Descrição

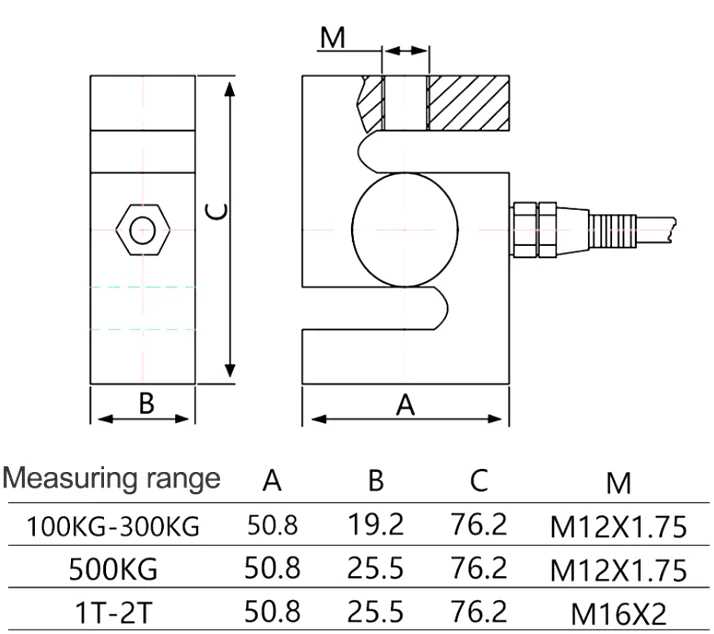

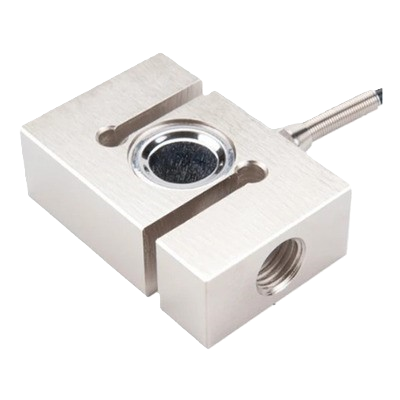

Especificações Técnicas – Load Cell / Force Sensor S
| Parâmetro | Valor |
|---|---|
| Maximum Capacity | 100 ~ 2000 kg |
| Output | 0 – 10 V or 4 – 20 mA |
| Sensitivity | 2.0 mV/V |
| Non-linearity | ≤ 0.03% F.S |
| Zero Output | ≤ 1% F.S |
| Temp. Coefficient of Sensitivity | ≤ 0.02% F.S/10 °C |
| Input Resistance | 380 ± 20 Ω |
| Safe Overload | 120% F.S |
| Insulation Resistance | ≥ 5000 MΩ |
| Hysteresis | ≤ 0.03% F.S |
| Creep in 30 Minutes | ≤ 0.03% F.S |
| Operating Temp. Range | -20 ~ +60 °C |
| Temp. Effect on Zero | ≤ 0.02% F.S/10 °C |
| Output Resistance | 350 ± 20 Ω |
| Protection | IP65 |
| Excitation Voltage | 12 V |
| Material (Measuring body / Cable sheath) | Stainless steel |
